About Full Wave rectifier
On the off chance that you recognize what is rectifier, at that point you may realize the approaches to decrease the wave or voltage minor departure from an immediate DC voltage by interfacing capacitors over the heap opposition. This technique might be reasonable for low power applications, yet not for applications which need an unfaltering and smooth DC supply. One technique to enhance this is to utilize each half-cycle of the info voltage rather than each other half-cycle waveform. The circuit which enables us to do this is known as a Full Wave Rectifier. How about we see full wave rectifier hypothesis in detail. Like the half wave circuit, working of Full Wave Rectifier circuit is a yield voltage or current which is absolutely DC or has some predetermined DC voltage.
Full wave rectifier
Full Wave Rectifier Circuit with Working
Full wave rectifiers have some key focal points over their half wave rectifier partners. The normal (DC) yield voltage is higher than for half wave rectifier, the yield of the full wave rectifier has substantially less wave than that of the half wave rectifier creating a smoother yield waveform.
Full wave rectifier
Full wave rectifier yield
Full Wave Rectifier Theory
In a full wave rectifier circuit we utilize two diodes, one for every 50% of the wave. A different winding transformer is utilized whose auxiliary winding is part similarly into equal parts with a typical focus tapped association. Design brings about every diode leading thusly when its anode terminal is sure regarding the transformer focus point C creates a yield during both half-cycles. Full rectifier preferences are adaptable contrasted with that of half wave rectifier.
Full Wave Rectifier Theory
Full Wave Rectifier Circuit
The full wave rectifier circuit comprises of two power diodes associated with a solitary burden obstruction (RL) with every diode taking it thusly to supply current to the heap resistor. At the point when point An of the transformer is certain concerning point A, diode D1 leads the forward way as demonstrated by the arrows.When point B is sure in the negative portion of the cycle as for C point, the diode D2 leads the forward way and the present moving through resistor R is a similar way for both half-cycles of the wave.
The yield voltage over the resistor R is the phasor total of the two waveforms, it is otherwise called a bi-stage circuit.The spaces between every half-wave created by every diode is currently being filled in by the other. The normal DC yield voltage over the heap resistor is currently twofold that of the single half-wave rectifier circuit and is about 0.637Vmax of the pinnacle voltage by accepting no misfortunes. VMAX is the most extreme pinnacle an incentive in one portion of the optional winding and VRMS is the rms esteem.
Working of Full Wave Rectifier
The pinnacle voltage of the yield waveform is equivalent to before for the half-wave rectifier gave every 50% of the transformer windings have the equivalent rms voltage. To get an alternate DC voltage yield diverse transformer proportions can be utilized. The weakness of this kind of full wave rectifier circuit is that a bigger transformer for a given power yield is required with two separate yet indistinguishable optional windings makes this sort of full wave redressing circuit expensive contrasted with the Full Wave Bridge Rectifier circuit.
Working of Full Wave Rectifier

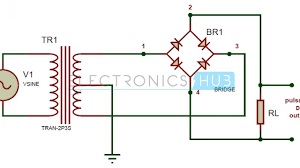

Given Circuit gives a diagram on working of full wave rectifier. A circuit that delivers a similar yield waveform as the full wave rectifier circuit an is that of the Full Wave Bridge Rectifier. Single stage rectifier utilizes four individual redressing diodes associated in a shut circle connect setup to deliver the ideal yield wave. The benefit of this scaffold circuit is that it doesn't require a unique focus tapped transformer, so it diminishes its estimate and cost. Single optional winding is associated with one side of the diode connect organize and the heap to the opposite side.
The four diodes named D1 to D4 are orchestrated in arrangement sets with just two diodes leading current during every half cycle term. At the point when the positive half cycle of the inventory goes, D1, D2 diodes lead in an arrangement while diodes D3 and D4 are switch one-sided and the present moves through the heap. During the negative half cycle, D3 and D4 diodes direct in an arrangement and diodes D1 and D2 switch off as they are currently invert one-sided design.
